Full Auto Hydraulic Bathroom Mandrel Pipe Bending Machine

Quantity:
  • GM-38CNC-2A-1S
  • GMACC
  • 8462219000

Product Description

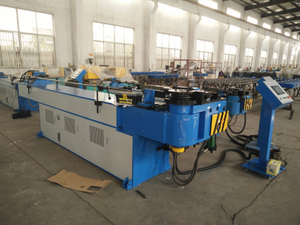

Full Auto Bathroom copper Pipe Bending Machine GM-38CNC-2A-1S


Main Technical Parameter

Name

Unit

 Parameter

Mild steel round tube

mm

38*2

Stainless Steel

mm

32*2

Light alloy annealed round tube

mm

40*3

Mild steel square tube

mm

25*25*2

Mild steel rectangular tube

mm

30*20*2

Mild steel round solid bar

mm

16

Mild steel square solid bar

mm

15*15

Min. bending radius

mm

20

Max. Bending radius(Standard)

mm

200

Head overhang (on bending centre)

mm

500

Head height (on bending centre)

mm

360

Bending centre height (from floor)

mm

945

Max. bar passage inside the P.O.B. positionner

mm

50

Clamping adjustable stroke

mm

0-90

Shouldering adjustable stroke

mm

256

Mandrel retraction adjustable stroke

mm

0-76

Max. Bending Angle

°

190°

Through Effective Distance

mm

3200

Bending Speed(Max.)

°/sec

60

Max. rotation speed (axis Z)

°/sec

200

Max. feeding speed (axis X.)

mm/sec

1000

Bending angle Precision

°

±0.10

Rotation angle Precision - axis Z

°

±0.10

Shifting Precision - axis X

mm

±0.10

Rotation Servo Motor Power

KW

0.4

Feeding Servo Motor Power

KW

0.75

System Motor Power

KW

4

Hydraulic Pump Volume

L

17

Max. Pressure

Mpa

16

L*W*H (Packaging Dimension)

mm

4000*700*1300

Machine Weight

T

ABOUT 1.5


Ø Configuration of Hydraulic and Electronic Control System



Name

Manufacturer

Hydraulic Motor

Germany Siemens(Beide)or Runmali

Hydraulic Pump

Wuxi Tuoli

Hydraulic Valve

Japan Yuken(Imported)

Oil way Board

Taiwan Shanghong Imported

Cylinder

ShanghaiQifan

Touch screen

Taiwan WeinviewImported)

PLC

Japan Mitsubishi(Imported)

Angle controller

Japan Nemicon(Imported)

Switch power

Taiwan Mingwei

Rotating/feeding servo motor

Japan Mitsubishi(Imported)

Contactor

Schneider
