GM-129NCB
GMACC
8462219000
Machine Characteristic

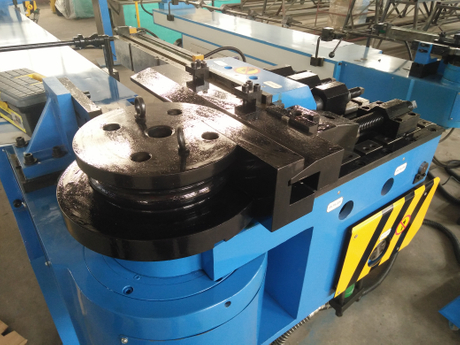

Full hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.
Main Technical Parameter
Name | Unit | Parameter |
Mild steel round tube | mm | 129*14 |
Stainless Steel | mm | 129*8 |
Light alloy annealed round tube | mm | 129*16 |
Mild steel square tube | mm | 100*100*6 |
Mild steel rectangular tube | mm | 105*95*6 |
Mild steel round solid bar | mm | 75 |
Mild steel square solid bar | mm | 65*65 |
Min. bending radius | mm | 50 |
Max. Bending radius(Standard) | mm | 550 |
Head overhang (on bending centre) | mm | 500 |
Head height (on bending centre) | mm | 720 |
Bending centre height (from floor) | mm | 1235 |
Max. Bending Angle | ° | 190° |
Through Effective Distance | mm | 4600 |
Bending Speed(Max.) | °/sec | 15 |
Bending angle Precision | ° | ±0.10 |
System Motor Power | KW | 15 |
Hydraulic Pump Volume | L | 41 |
Max. Pressure | Mpa | 16 |
L*W*H (Packaging Dimension) | mm | 6000*1800*1300 |
Machine Weight | T | 7.5 |
Configuration of Hydraulic and Electronic Control System
Name | Manufacturer |
Hydraulic Motor | Germany Siemens（BEIDE）/Runmali |
Hydraulic Pump | Wuxi Tuoli |
Hydraulic Valve | Japan Yuken（Imported） |
Oil way Board | Taiwan Shanghong （Imported） |
Cylinder | Shanghai Qifan |
Touch screen | Taiwan Weinview（Imported) |
PLC | Japan Mitsubishi（Imported） |
Angle controller | Japan Nemicon（Imported） |
Switch power | Taiwan Mingwei |
Contactor | German SCHNEIDER（Imported) |
Transformer | Wuxi Xinyu |
Bending Samples
Tooling Samples
