NC Stainless Steel Hot Induction Tube Bender

5 0 Reviews
Price: $ 33000 / PIECE
Discount Price: $ 9899 / PIECE
SKU:
Availability:
Quantity:
  • GM-140NCB

  • GMACC

  • 8462219000

Product Description

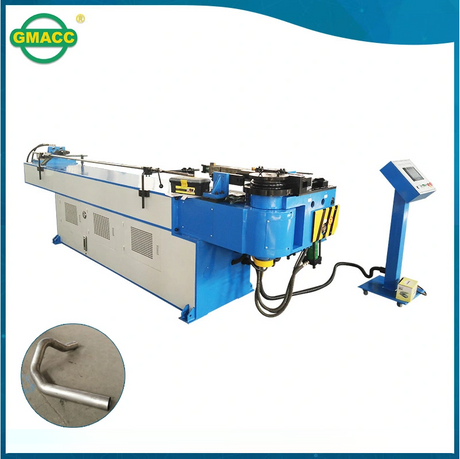

NC Stainless Steel Pipe Bending Machine GM-140NCB


Ø Machine Characteristic

Full hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.



Ø Main Technical Parameter



Name

Unit

 Parameter

Max. Bending Capacity

  mm

140*16

Bending Radius Range

mm

50-600

Max. Bending Angle

°

 190°

Though Effective Distance

mm

5000

Bending Speed

°/sec

12

Bending Precision

°

±0.10

System Motor Power

KW

15

Oil Pump Delivery Volume

L

45

Max. Pressure

Mpa

16

L*W*H (Packaging Dimension)

mm

6500*2000*1350

Machine Weight

T

About 9.0



Ø Configuration of Hydraulic and Electronic Control System



Name

Manufacturer

Hydraulic Motor

Germany Siemens(Beide) or Runmali

Hydraulic Pump

Wuxi Tuoli

Hydraulic Valve

Japan Yuken(Imported)

Oil way Board

Taiwan Shanghong (Imported)

Cylinder

ShanghaiQifan

Touch screen

Taiwan Weinview(Imported)

PLC

Japan Mitsubishi(Imported)

Angle controller

Japan Nemicon(Imported)

Switch power

Taiwan Mingwei

Contactor

German SCHNEIDER

Transformer

Wuxi Xinyu

Metal tube bendermetal tube bender
