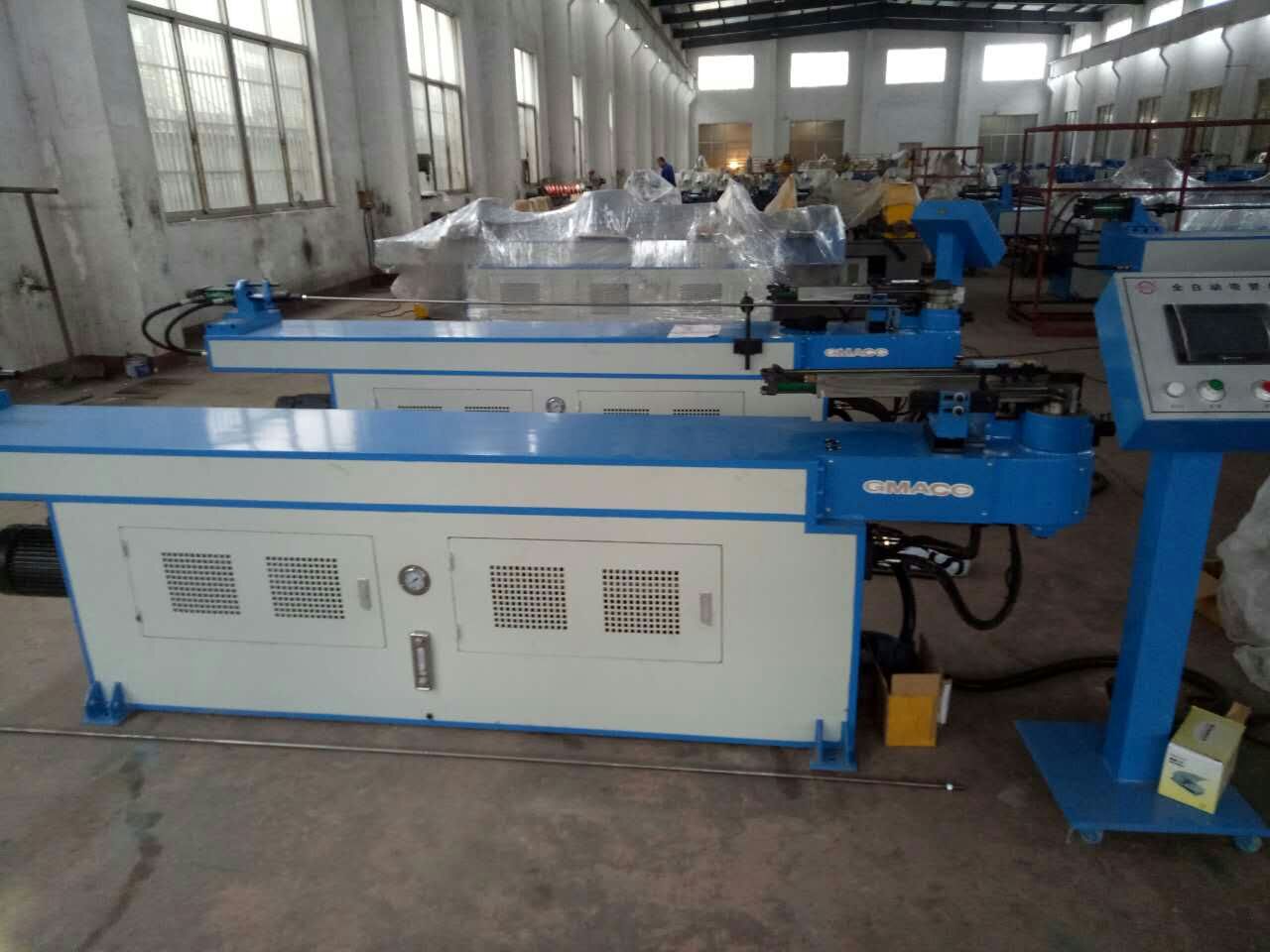

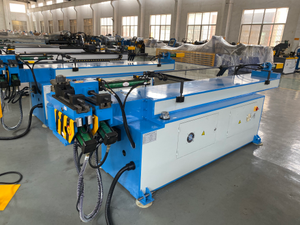

CNC single head Handmade Copper Pipe Bending Machine

5 0 Reviews

Full hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.

Price: $ 4700 / PIECE

Discount Price: $ 2399 / PIECE

SKU:
Availability:

Quantity:



Buy Now Add to Cart

Model:
GM-38NCB
Brand:
GMACC
Code:
8462219000

Product Description

Product Description

CNC 3 roll pipe bending machine GM-38NCB

Ø Main Technical Parameter

Name	Unit	Parameter
Mild steel round tube	mm	38*2
Stainless Steel	mm	32*2
Light alloy annealed round tube	mm	40*3
Mild steel square tube	mm	25252
Mild steel rectangular tube	mm	30202
Mild steel round solid bar	mm	16
Mild steel square solid bar	mm	15*15
Min. bending radius	mm	20
Max. Bending radius(Standard)	mm	200
Max. Bending Angle	°	190°
Through Effective Distance	mm	3000
Bending Speed(Max.)	°/sec	60
Bending angle Precision	°	±0.10
System Motor Power	KW	4
Hydraulic Pump Volume	L	17
Max. Pressure	Mpa	16
LWH (Packaging Dimension)	mm	32007001300
Machine Weight	T	About 1.5

Ø Configuration of Hydraulic and Electronic Control System

Name	Manufacturer
Hydraulic Motor	Germany Siemens（BEIDE）or Runmali
Hydraulic Pump	Wuxi Tuoli
Hydraulic Valve	Japan Yuken（Imported）
Oil way Board	Taiwan Shanghong （Imported）
Cylinder	Shanghai Qifan
Oil tube	Zhejiang
Touch screen	Taiwan Weinview（Imported)
PLC	Japan Mitsubishi（Imported）
Angle controller	Japan Nemicon（Imported）
Switch power	Taiwan Mingwei
Contactor	Schneider
Transformer	Wuxi XINYU
