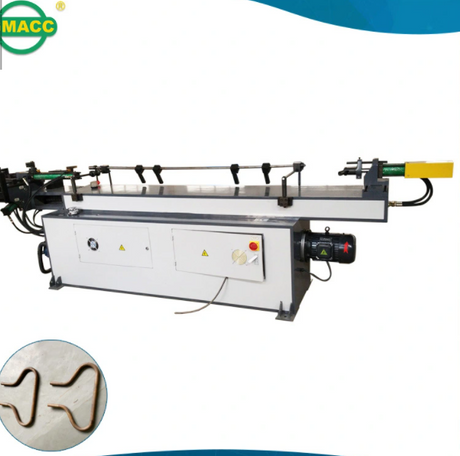

heavy full automatic standard Hydraulic Pipe Bending Machine

Quantity:
  • GM-76CNC-2A-1S
  • GMACC
  • 8462219000

Product Description

Single Head Wheelbarrow Pipe Bending Machine GM-76CNC-2A-1S

Ø Machine Characteristics

GM-SB-76CNC series CNC single head pipe bender is a product that combines our technology with advanced Italian technology, which combines machine, hydraulic and electric power. The series uses VDU touch screen operating panel to input, store and display various bending data, and sort the three moving coordinates of the Y,B,C under the precise control of the industrial computer. CNC machine tools also have advanced functions, such as component bending springback compensation, fault self-diagnosis alarm, power-off memory storage, automatic lubrication and safety protection.

Ø Main Technical Parameter

Name

Unit

 Parameter

Mild steel round tube

mm

76*4

Stainless Steel

mm

76*3

Light alloy annealed round tube

mm

76*6

Mild steel square tube

mm

60*60*3

Mild steel rectangular tube

mm

65*55*3

Mild steel round solid bar

mm

35

Mild steel square solid bar

mm

30*30

Min. bending radius

mm

30

Max. Bending radius(Standard)

mm

350

Head overhang (on bending centre)

mm

600

Head height (on bending centre)

mm

580

Bending centre height (from floor)

mm

1060

Max. bar passage inside the P.O.B. positionner

mm

50

Clamping adjustable stroke

mm

0-136

Shouldering adjustable stroke

mm

300

Mandrel retraction adjustable stroke

mm

0-136

Max. Bending Angle

°

190°

Through Effective Distance

mm

4000

Bending Speed(Max.)

°/sec

30

Max. rotation speed (axis Z)

°/sec

160

Max. feeding speed (axis X.)

mm/sec

800

Bending angle Precision

°

±0.10

Rotation angle Precision - axis Z

°

±0.10

Shifting Precision - axis X

mm

±0.10

Rotation Servo Motor Power

KW

1.5

Feeding Servo Motor Power

KW

1.5

System Motor Power

KW

7.5

Hydraulic Pump Volume

L

23

Max. Pressure

Mpa

16

L*W*H (Packaging Dimension)

mm

4800*1200*1350

Machine Weight

T

ABOUT 3.5


Ø Configuration of Hydraulic and Electronic Control System

Name

Manufacturer

Hydraulic Motor

Germany Siemens(Beide)or Runmali

Hydraulic Pump

Wuxi Tuoli

Hydraulic Valve

Japan Yuken(Imported)

Oil way Board

Taiwan Shanghong Imported

Cylinder

Shanghai Qifan

Touch screen

Taiwan WeinviewImported)

PLC

Japan Mitsubishi(Imported)

Servo Motor

Japan Mitsubishi(Imported)

Angle controller

Japan Nemicon(Imported)

Contactor

German SCHNEIDER

Transformer

Wuxi Xinyu
