Steel 3 roller pipe bending machine GM-SB-100CNC

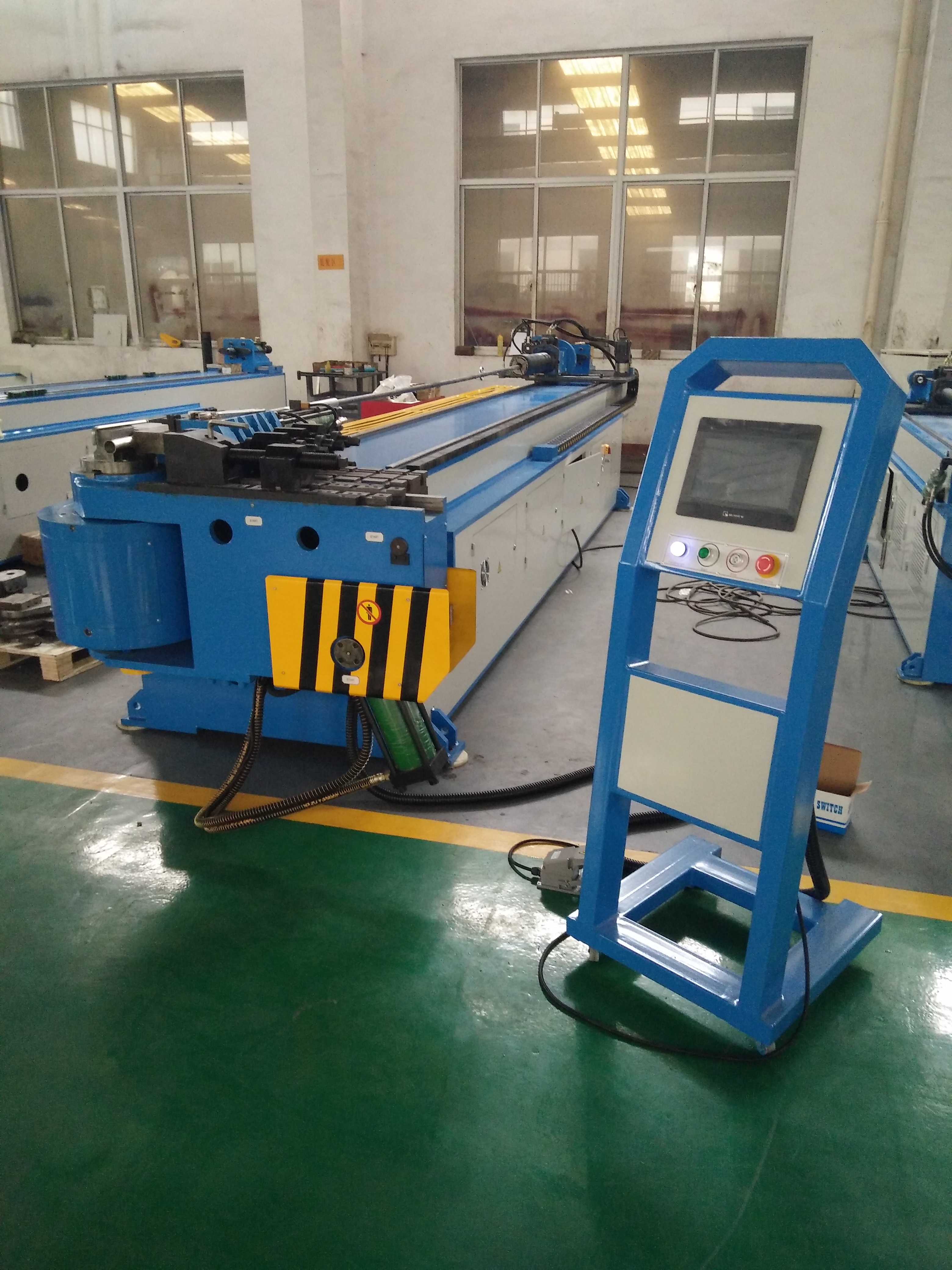

GM-SB-NC series CNC single-head pipe bender is a combination of our company's technology and Italian advanced technology, integrating machine, hydraulic and electric products. This series adopts VDU touch screen operation panel, which can input, store and display various bending data and sequence. Under the precise control of the industrial computer, the three motion coordinates of Y, B and C can realize rapid bending on or under the mandrel. The CNC machine tool also has component bending spring return compensation, error self-diagnosis alarm, Advanced functions such as memory storage, automatic lubrication and safety protection after power failure. Advanced technology, high degree of automation reliability, and integrated design all make CNC pipe bender a world-class pipe processing equipment.
Main Technical Parameter
Name | Unit | Parameter |
Mild steel round tube | mm | ￠100*8 |
Stainless Steel | mm | ￠100*5 |
Light alloy annealed round tube | mm | ￠100*10 |
Mild steel square tube | mm | 70*70*6 |
Mild steel rectangular tube | mm | 75*65*6 |
Mild steel round solid bar | mm | ￠40 |
Mild steel square solid bar | mm | 35*35 |
Min. bending radius | mm | 40 |
Max. Bending radius(Standard) | mm | 400 |
Head overhang (on bending centre) | mm | 460 |
Head height (on bending centre) | mm | 610 |
Bending centre height (from floor) | mm | 1140 |
Max. bar passage inside the P.O.B. positionner | mm | 70 |
Clamping adjustable stroke | mm | 0-140 |
Shouldering adjustable stroke | mm | 350 |
Mandrel retraction adjustable stroke | mm | 0-150 |
Max. Bending Angle | ° | 190° |
Through Effective Distance | mm | 4000 |
Bending Speed(Max.) | °/sec | 25 |
Max. rotation speed (axis Z) | °/sec | 160 |
Max. feeding speed (axis X.) | mm/sec | 500 |
Bending angle Precision | ° | ±0.10 |
Rotation angle Precision - axis Z | ° | ±0.10 |
Shifting Precision - axis X | mm | ±0.10 |
Rotation Servo Motor Power | KW | 1.5 |
Feeding Servo Motor Power | KW | 1.5 |
System Motor Power | KW | 11 |
Hydraulic Pump Volume | L | 30 |
Max. Pressure | Mpa | 16 |
L*W*H (Packaging Dimension) | mm | 5300*1350*1200 |
Machine Weight | T | ABOUT 4.8 |
Ø Configuration of Hydraulic and Electronic Control System
Name | Manufacturer |
Hydraulic Motor | Germany Siemens（Beide）or Runmali |
Hydraulic Pump | Wuxi Tuoli |
Hydraulic Valve | Japan Yuken（Imported） |
Oil way Board | Taiwan Shanghong （Imported） |
Cylinder | ShanghaiQifan |
Touch screen | Taiwan Weinview（Imported) |
PLC | Japan Mitsubishi（Imported） |
Angle controller | Japan Nemicon（Imported） |
Switch power | Taiwan Mingwei |
Rotating/feeding servo motor | Japan Mitsubishi（Imported） |
Contactor | Schneider |
