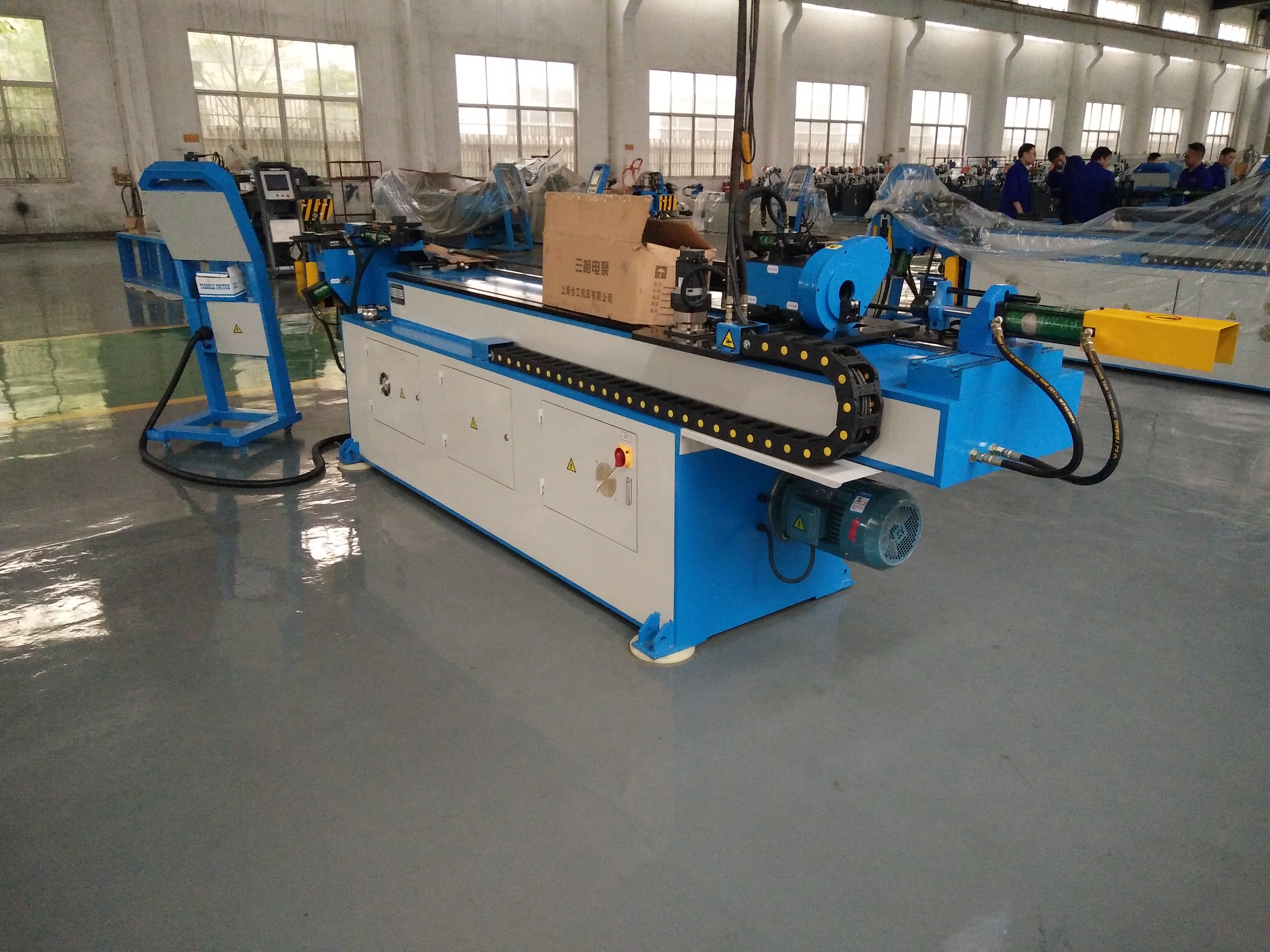

GM-SB-18CNC series CNC single-head pipe bender is a product that combines our company's technology with Italian advanced technology and integrates machine, hydraulic and electricity. This series adopts VDU touch screen operation panel, which can input, store and display various bending data and sequence. Under the precise control of industrial computer, the three motion coordinates of Y, B and C can realize automatic mandrel up and down. For fast bending, the CNC machine tool also has advanced functions such as component bending springback compensation, error self-diagnosis alarm, memory storage after power failure, automatic lubrication and safety protection. The bending pipe (C axis), the rotating pipe (B axis), and the pipe feeding (Y axis) are all driven by a closed-loop servo motor. Advanced technology, high degree of automation reliability, and integrated design make the CNC pipe bending machine a world-class pipe processing equipment.
Name | Unit | Parameter |
Max. Bending Capacity | mm | ￠18*2 |
Bending Radius Range | mm | 20-150 |
Max. Bending Angle | ° | 190 |
Bending Speed | °/sec | 240 |
Turning Speed | °/sec | 300 |
Feeding Speed | mm/sec | 1000 |
Bending Precision | ° | ±0.10 |
Turning Precision | ° | ±0.10 |
Feeding Precision | mm | ±0.10 |
Turning Servomotor Power | kW | 0.4 |
Feeding Servomotor Power | kW | 0.4 |
Though Effective Distance | mm | 1500 |
System Motor Power | kW | 2.2 |
Max. Pressure | Mpa | 16 |
Oil Pump Delivery Volume | L | 25 |
L*W*H (Packaging Dimension) | mm | 3000*750*1300 |
Weight | T | about 1.3 |
