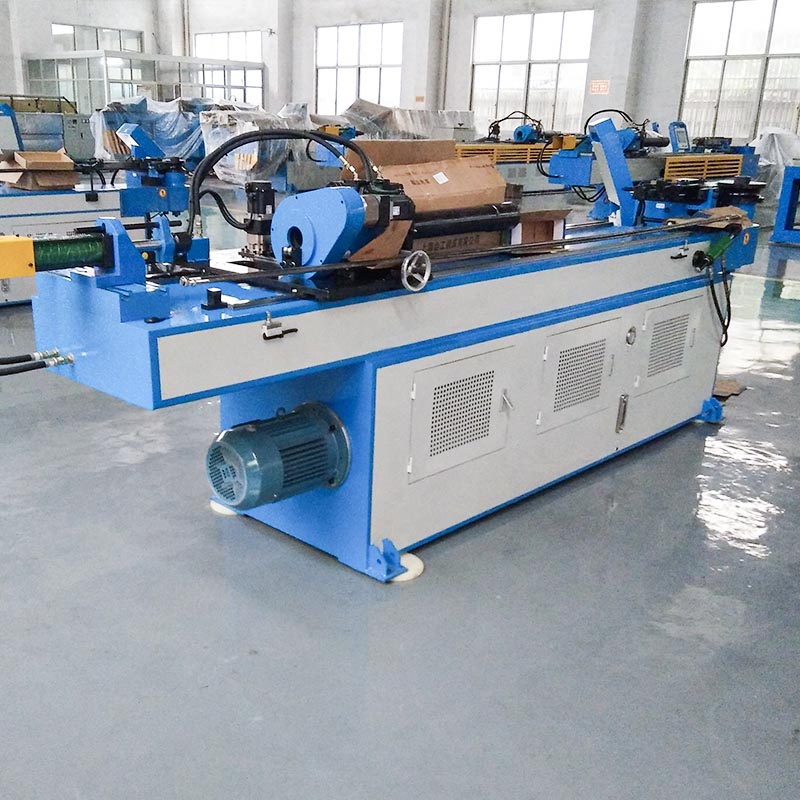

4-inch car exhaust pipe bending machine GM-100NCB
Technical Parameter and Configuration for Automatic Pipe Bending Machine GM-SB-100NCB
Ø Machine Characteristic
Full hydraulic drive, PLC control, pipe bender with touch screen or text, equipped with pipe clamp, guide mold, mandrel, anti-wrinkle, booster, pipe bending and other devices. Under hydraulic operation, this professional, high-speed, and economic European-style pipe bender can bend various sizes of normal and special-shaped metal pipes. The bending angle is controlled by a high-precision imported encoder to ensure the high precision of the machine.
Ø Main Technical Parameter
Name | Unit | Parameter |
Mild steel round tube | mm | ￠100*8 |
Mild steel square tube | mm | 70*70*6 |
Mild steel rectangular tube | mm | 75*65*6 |
Mild steel round solid bar | mm | ￠45 |
Mild steel square solid bar | mm | 40*40 |
Min. bending radius | mm | 40 |
Max. Bending radius(Standard) | mm | 400 |
Head overhang (on bending centre) | mm | 460 |
Head height (on bending centre) | mm | 610 |
Bending centre height (from floor) | mm | 1140 |
Max. Bending Angle | ° | 190° |
Through Effective Distance | mm | 4000 |
Bending Speed(Max.) | °/sec | 25 |
Bending angle Precision | ° | ±0.10 |
System Motor Power | KW | 11 |
Max. Pressure | Mpa | 16 |
L*W*H (Packaging Dimension) | mm | 5300*1350*1200 |
Machine Weight | T | ABOUT 4.5 |
Ø Configuration of Hydraulic and Electronic Control System
Name | Manufacturer |
Hydraulic Motor | Germany Siemens（Beide）/Runmali |
Hydraulic Pump | Wuxi Tuoli |
Hydraulic Valve | Japan Yuken（Imported） |
Oil way Board | Taiwan Shanghong （Imported） |
Cylinder | Shanghai Qifan |
Touch screen | Taiwan Weinview（Imported) |
PLC | Japan Mitsubishi（Imported） |
Angle controller | Japan Nemicon（Imported） |
Switch power | Taiwan Mingwei |
Transformer | Wuxi Xinyu |
Contactor | SCHNEIDER |
