| Quantity: | |
|---|---|
GM-42B
GMACC
8462510090
iron frame
1
9999
shanghai
99999
TT
Product Description

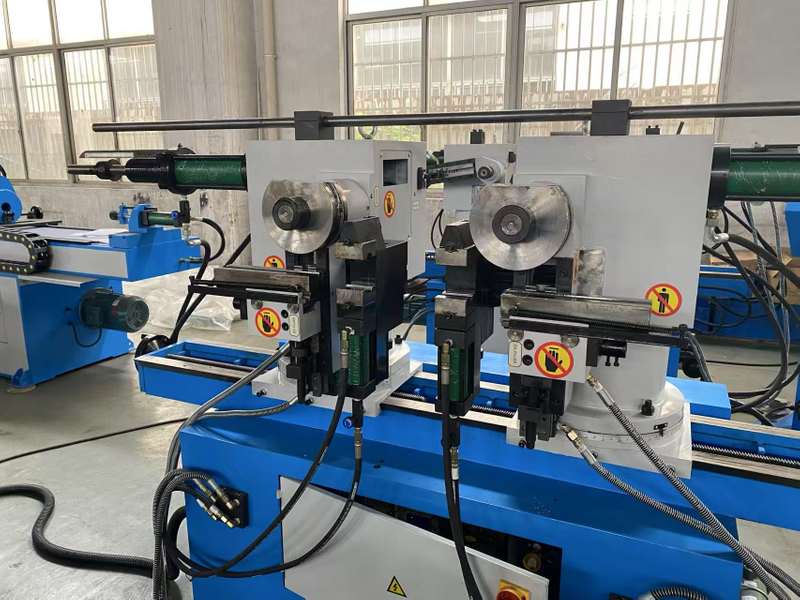

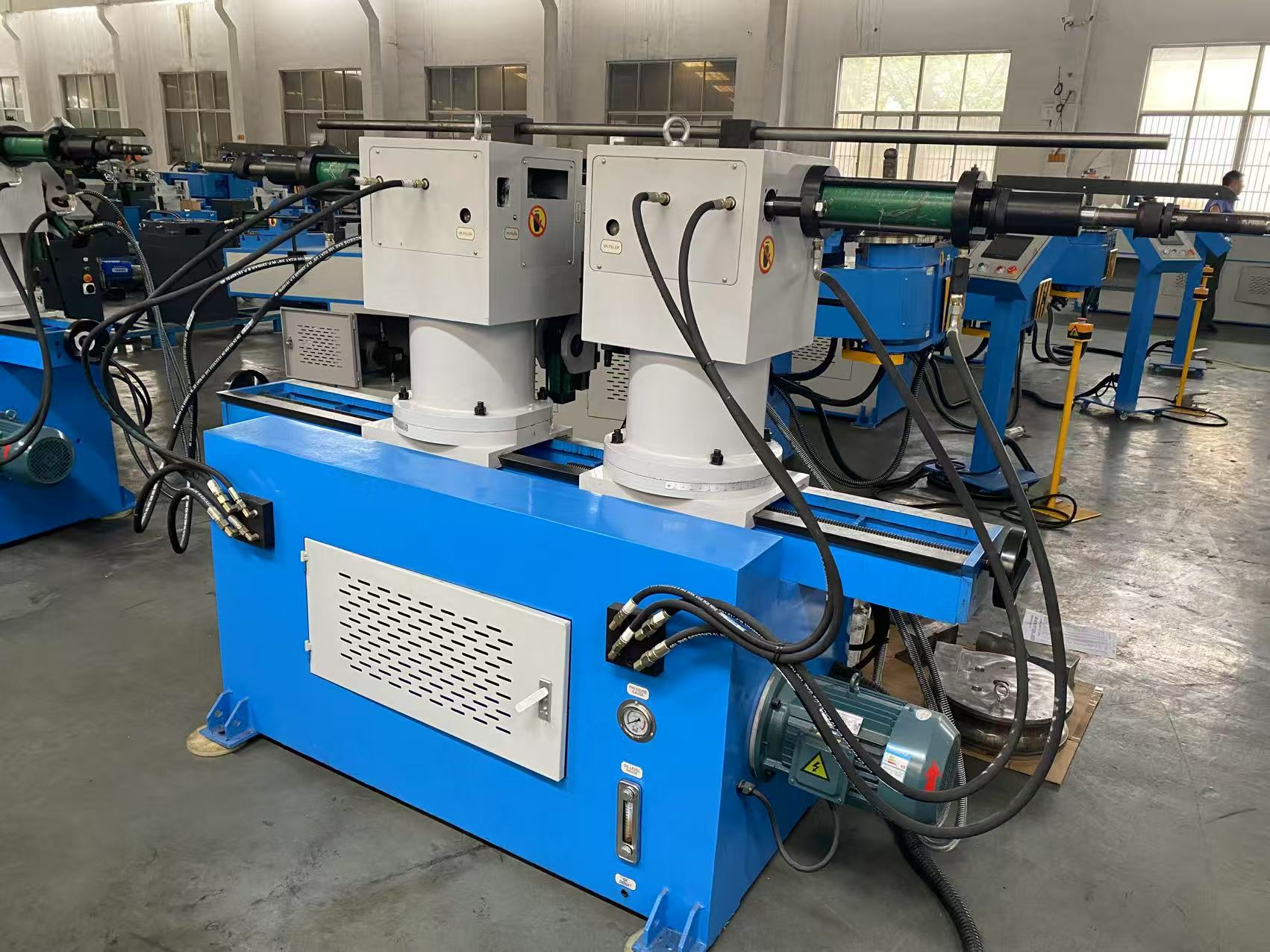

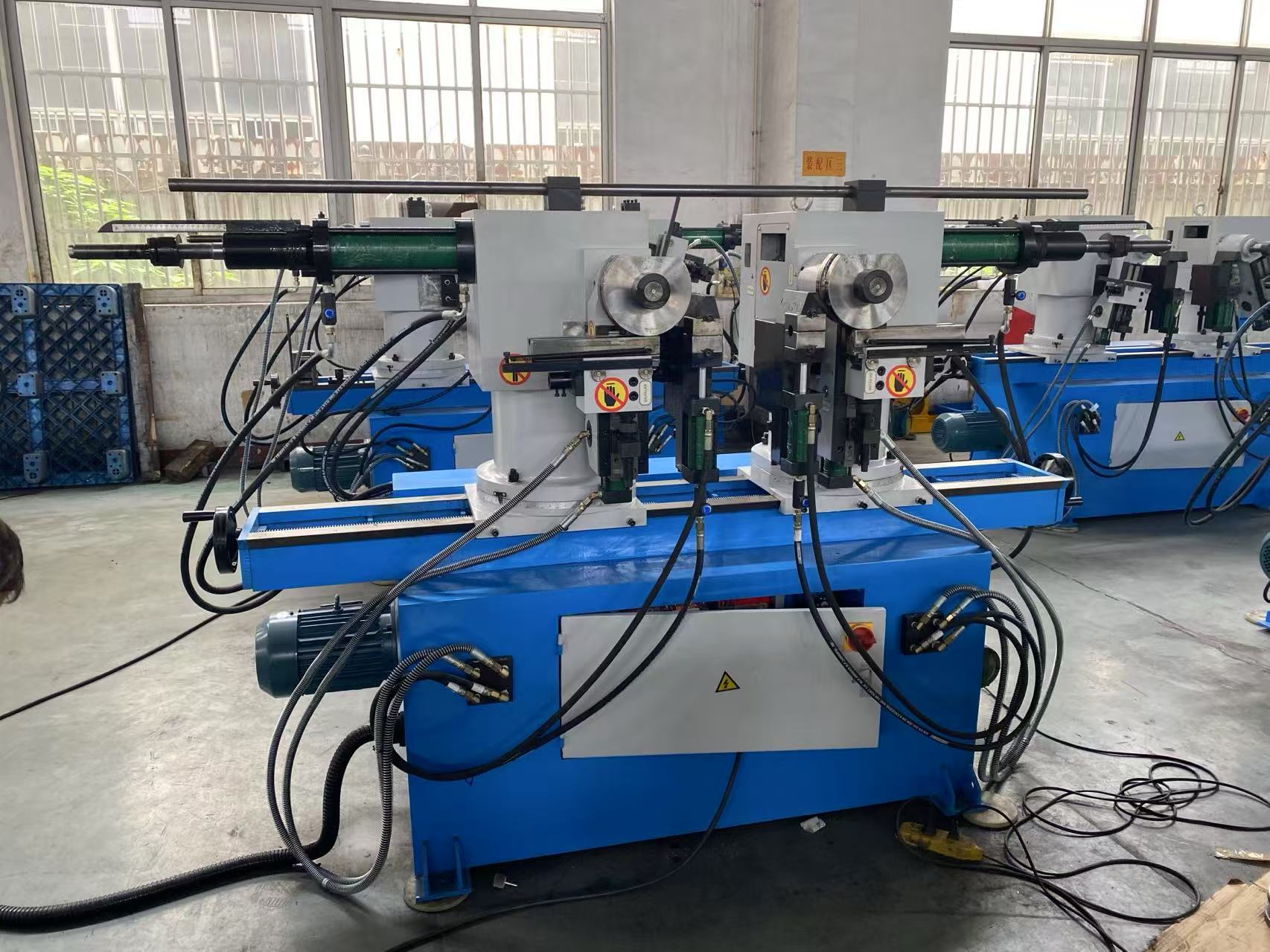

Double head bending machine: Model GM-DB 42B
1. Characteristics of the machine:
(1) The control system has normal PLC type and contact digital control type.
(2) According to different base frame, it can be divided into standard type and rotary type.
(3) Hand-operated, auto, semi-circulation and other functions can be chosen.
(4) PLC control, imported electric elements. The program can be stored forever, no losing.
(5) Foot switch has auto start, emergency stop, emergency-stop and going on function, it has
high safety.
(6) Double head can be used separately.
(7) Three pieces can be bended one times.
2. Main technical parameters
Main technical parameters | unit | GM-DB-42B |
Max pipe bending capacity | mm | Φ42×2 |
Bending radius region | mm | 42~250 |
Max bending angle region | ° | 185° |
Centre distance of double head | mm | 170-2100 |
Main motor power | kw | 4 |
Bending speed | °/sec | 50 |
Oil flow productivity of the pump | L | 17 |
Oil system pressure | mpa | 14 |
Clamping traverse | mm | 50 |
Capacity of oil tank | L | 120 |
Machine dimension | mm | 3300×900×1800 |
Machine weight | kg | 3200 |
3. The main Configuration:
Name | Manufacturer |
Hydraulic Motor | Runmali |
Hydraulic Pump | Wuxi Tuoli |
Hydraulic Valve | Yuken |
Oil way Board | Taiwan Shanghong |
Cylinder | Shanghai Qifan |
Oil tube | Suzhou Kejia |
Touch screen | Taiwan Weinview |
PLC | Mitsubishi |
Other Electric Parts | SCHNEIDER,Omron |
